Structural glass design

What structural glass design means in practice

When glass is used structurally, it must be treated in the same way as other structural materials. This means that its behaviour under load, its failure modes, its tolerances and its interaction with supporting elements all require detailed consideration. The visual transparency of glass does not reduce structural responsibility.

For main contractors and architects, the challenge is aligning design intent with the physical behaviour of glass. Glass is strong in compression but brittle in tension and highly sensitive to edge condition, lamination and support. Small changes in geometry or fixing can significantly affect structural performance.

Structural glass design therefore demands early technical input, robust calculation and close coordination between architect, structural engineer and specialist glazing contractor.

Key considerations in structural glass design specification

Structural glass design introduces a risk aspect in specifications because glass is often selected for its visual qualities before its structural role and tolerances are fully defined. Unlike steel or concrete, glass has little capacity to accommodate uncertainty in loading or movement, meaning early assumptions can quickly become technical constraints.

Across façades, stairs, floors, roofs and glazed screens, risk commonly arises where load paths are not clearly established. A panel assumed to span may in practice behave as a cantilever, increasing stress and deflection. Changes in support position of 20-30 mm can be sufficient to alter structural behaviour and require a different glass make-up or interlayer.

Tolerance sensitivity is a recurring issue. Structural glass typically requires support tolerances of ±2-3 mm at fixing zones, while cast concrete slab edges often vary by ±10 mm or more unless tightly controlled. If this mismatch is not addressed early, secondary trims or packing are introduced, increasing cost and undermining visual intent.

Lamination and interlayer performance are often underestimated. Laminated glass of identical thickness can behave very differently depending on interlayer type. Standard PVB loses stiffness at elevated temperatures, while structural interlayers such as ionoplast retain shear transfer. Without early agreement on design temperatures, service performance can fall short of expectations.

Fixing zones impose further constraints. Edge distances, hole positions and countersinks are typically controlled within ±1 mm. Late changes to accommodate structure or services can invalidate previously agreed specifications, leading to re-engineering or remanufacture.

Risk increases significantly when structural glass is introduced late in the programme, once slab edges, steelwork and waterproofing are fixed. At this stage, mitigation usually takes the form of thicker glass, heavier fixings or visual compromise rather than genuine optimisation.

For specifiers, effective risk management means treating structural glass as a primary structural material from the outset. Early engagement with structural engineers and specialist glazing contractors allows loads, tolerances, deflection limits and interfaces to be defined before geometry and procurement routes are fixed.

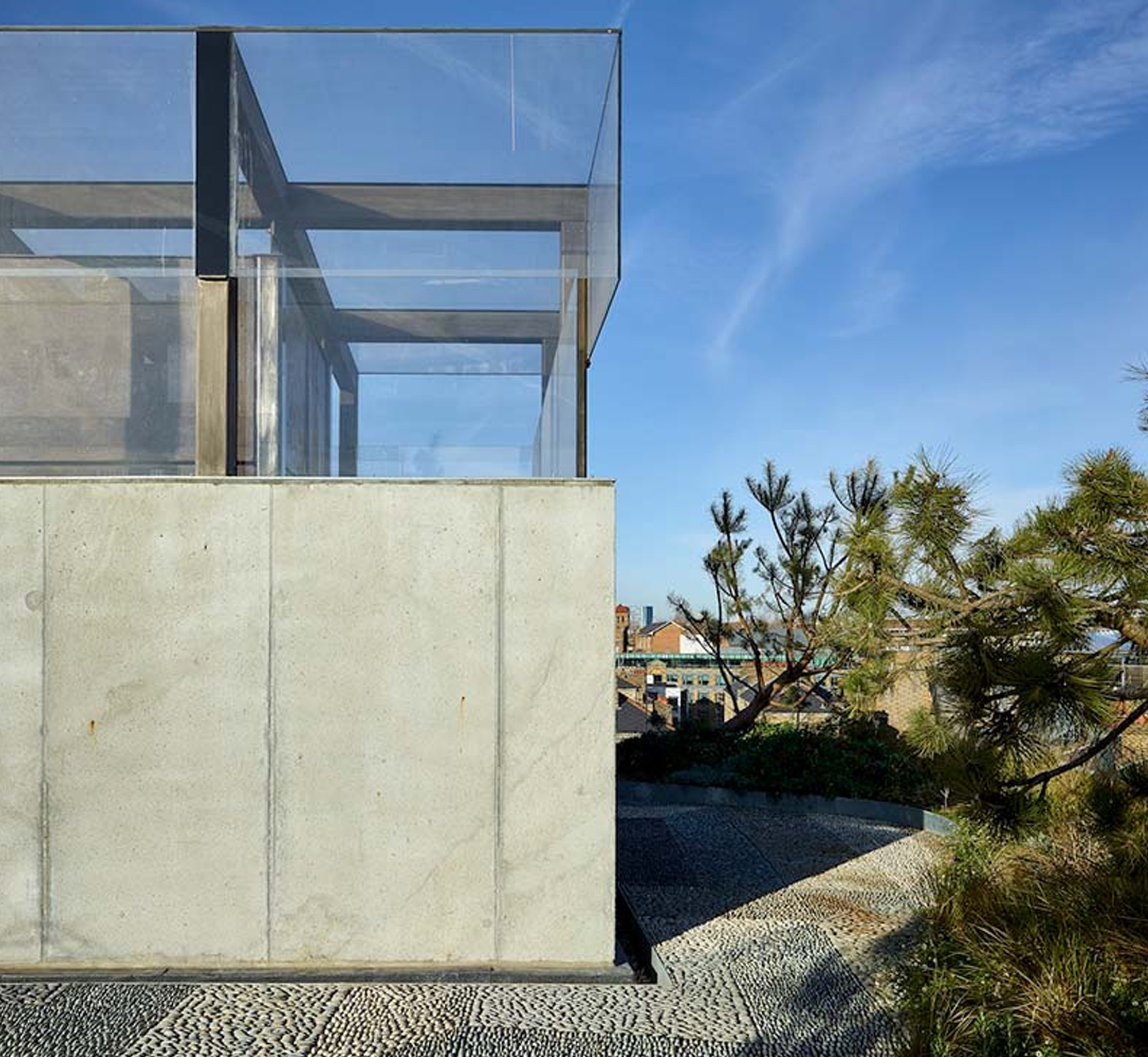

Glass specification fundamentals

In structural glass design, performance is defined by system behaviour, not by glass thickness alone. Glass only performs predictably when its material properties, lamination strategy, interlayer behaviour and support conditions are considered together.

Thicker glass does not automatically mean better performance.

Structural glass is typically required to resist bending, shear and localised stresses depending on application. Façade panels may span vertically between supports, glass fins may act in bending to stabilise curtain wall systems, stair treads may experience concentrated point loads, and walk-on glass must accommodate both static and dynamic actions. Each scenario places different demands on the glass make-up.

Key specification variables include:

• Glass type, such as toughened or heat-strengthened
• Number of plies and laminated build-up
• Interlayer type and thickness
• Support and restraint conditions
• Edge finishing, drilling and cut-out detailing
• Design temperature and load duration assumptions

In the UK, structural glass specification is typically supported by the following standards and design methods:

• BS EN 16612:2019 Glass in building; determination of the lateral load resistance of glass panes by calculation, used to verify glass thickness and configuration under wind and other lateral actions.
• BS 6180:2011 Barriers in and about buildings; which sets out performance and loading criteria for structural glass balustrades and guarding.
• BS EN 12600:2002 Glass in building, Pendulum test; impact test method and classification for flat glass, used to classify impact performance and safety characteristics of glass in critical locations.

Lamination is critical to structural performance. While laminated glass provides post-breakage capacity and load sharing, its behaviour depends on interlayer selection. Standard PVB interlayers lose stiffness at higher temperatures, increasing deflection, whereas structural interlayers such as ionoplast maintain shear transfer and stiffness over a wider temperature range.

Support conditions also govern performance. Glass designed to span between continuous supports will behave very differently if restraint is reduced or interrupted. Small changes in effective span, often driven by fixing tolerances or interfaces, can require a revised glass specification.

Edge quality and detailing are fundamental. Structural glass is highly sensitive to edge defects, drilled holes and cut-outs, all of which act as stress concentrators. Tolerances around fixing positions and edge distances are therefore tight and must be coordinated early. Late changes can invalidate previously agreed specifications.

Specification must be supported by structural calculations covering both ultimate and serviceability limit states. In visually exposed applications, deflection and perceived movement often govern design more than strength and should be addressed through the glass make-up, not secondary measures.

For architects and main contractors, effective specification of structural glass depends on defining performance requirements before geometry and construction details are fixed. This includes clear agreement on loading, deflection limits, environmental conditions and interfaces with structure, waterproofing and finishes.

When these fundamentals are resolved early, structural glass can be integrated confidently across façades, roofs, floors, stairs and internal elements, reducing redesign, project risk and late-stage compromise on site.

Structural glass case study – 15 Clerkenwell Close

At 15 Clerkenwell Close, a RIBA London Award and RIBA National Award winning residential project designed by Amin Taha Architects and Groupwork, structural glass formed an integral part of a highly expressive architectural concept.

The building is defined by a limestone structural exoskeleton, with bespoke glass elements infilling and complementing the structure. Glasstec Systems delivered the design, supply and installation of over 200 insulated glass panels, all individually shaped to suit the geometry of the façade, along with bespoke pavement lights and roof glazing.

The success of the glass installation relied on early technical collaboration. Geometry, tolerances and fixing strategies were developed in parallel with architectural intent, allowing the glass to support the clarity of the design rather than compromise it.

This project demonstrates how structural glass can be deployed confidently when performance requirements are understood from the outset.

Click here to read the full case study

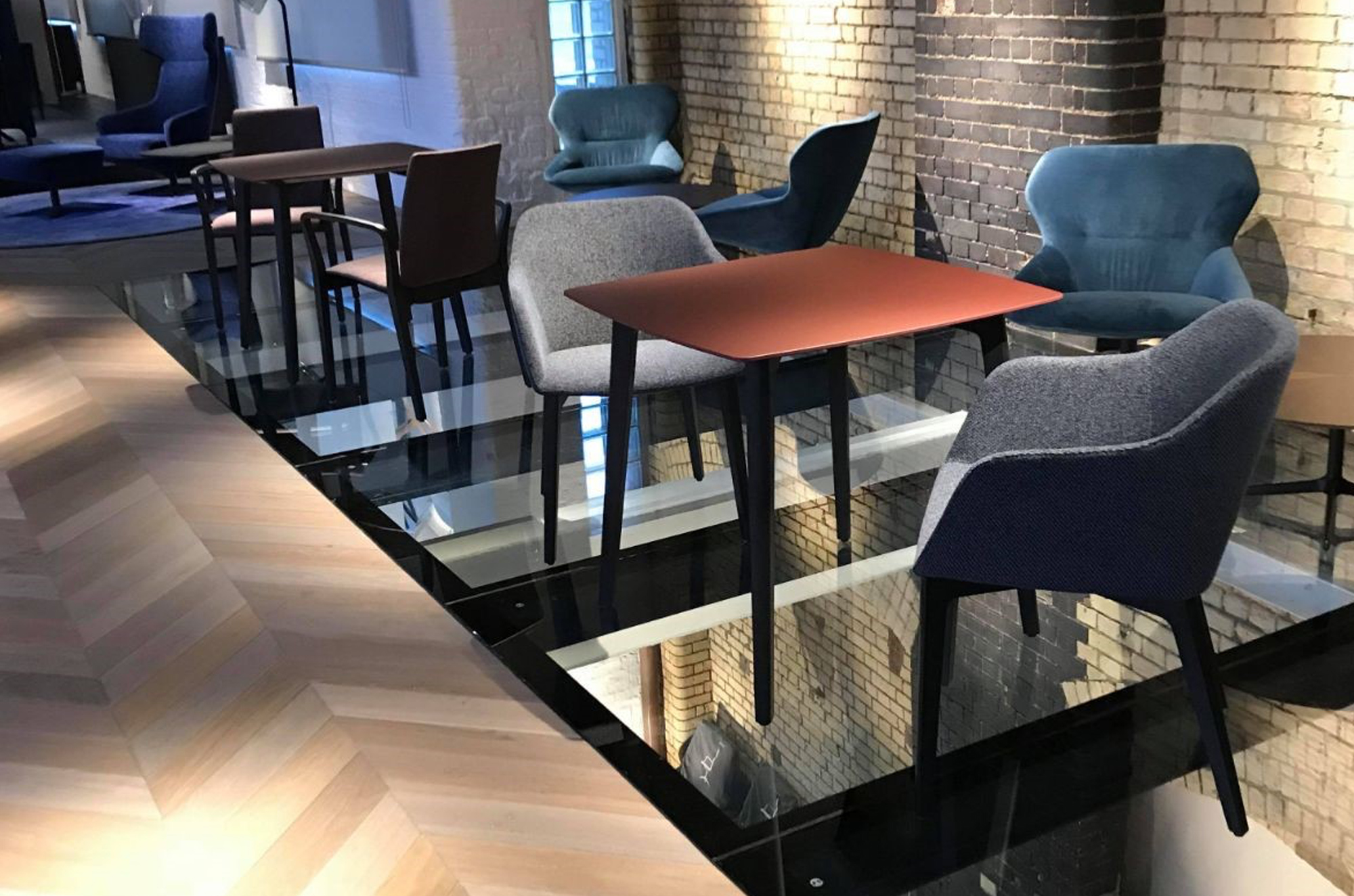

The value of early specialist engagement

Structural glass design benefits disproportionately from early specialist engagement because glass behaves very differently to most conventional structural materials. Its performance is highly sensitive to how the glass is sized and supported, tolerances and detailing, all of which are typically defined during the early design stages.

Early engagement allows feasibility to be tested before form and geometry are locked in. Specialists can advise on realistic spans, deflection limits, fixing strategies and tolerance requirements while design flexibility still exists, ensuring glass is used efficiently as a structural material.

Early coordination is also critical. Structural glass interfaces directly with structure, waterproofing, thermal envelopes and finishes. And resolving slab edge tolerances, steelwork alignment, drainage and movement joints early avoids visible trims, packing and compromised detailing later.

From a delivery and risk perspective, early involvement improves predictability. Structural calculations, glass make-ups, interlayer performance and fixing strategies can be developed in parallel with design, allowing compliance, serviceability and cost to be confirmed before procurement and reducing redesign and any risk on site.

For main contractors and architects, the value of early specialist engagement lies in treating structural glass as a primary structural material from the outset.

When structural glass is integrated into the design process early, it supports architectural clarity, technical robustness and buildability across a wide range of applications. When introduced late, it is more likely to become a source of compromise, delay and avoidable risk.
